Oblectroid Graph1

Graphs/Specs for the Oblectroid

Terrahorn Graph Button

decorative line

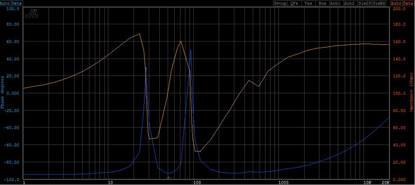

Specs:

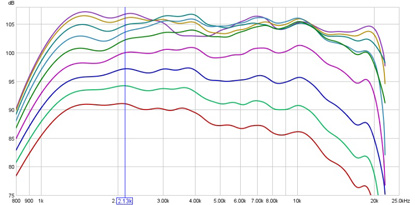

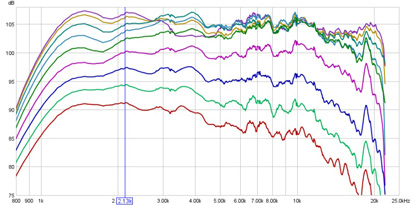

The plots on the right are measurements of just the waveguide, after minimal Eq, we can see we have amazing control off axis in the top range (beyond 20k), each line apart from the first, represents 7.5 degree off axis incriments. So the purple line hovering around 100dB is 37.5 degrees off axis, and just before here we can see at around 35 degree off axis (the -6dB point) it starts to loose control albeit fairly evenly... which is perfect as we wanted a 70 degree guide.

The full frequency response graph and waterfall plots to follow shortly.
